HONDA CBR1000RR-R (SC82)
FCC Slipper Clutch Kit
FCC SLIPPER CLUTCH KIT
Technical Feature
It is a race-specific clutch with dramatically improved back torque control and clutch operability, and greatly improved maintainability.

  1. When the back torque is input, the lever vibration is greatly reduced by the structure that the clutch SPG (3 out of 6) is pushed up to control the pressure plate load, instead of the cam pushing up the pressure plate directly.
  2. The slip torque can be adjusted only by changing the SPG, not by replacing the slipper cam body, so setting is easy (torque can be set using two types of upper and lower optional springs).
  3. Durability is improved by using a steel cam.
P/No.-
$ 3330 USD
FULL - EX
Type-S
Applicable model / year : '20- CBR1000RR-R (SC82) Race vehicle
EX pipe : Ti
Silencer : Ti
Product weight : 4.2kg (including silencer stay, STD : 7.7kg)
OIL exchange : OK
OIL filter : OK
Proximity exhaust noise : 100dB / 6000rpm

Remark :
Sprint Race specifications
It is a product for racing and a product for circuit driving. You cannot drive on public roads.
Regarding the volume, please check the noise regulations and race rules of the circuit you are driving.
The price of this item is over 300,000-(tax included), so cash on delivery cannot be settled.
Includes aluminum silencer stay.

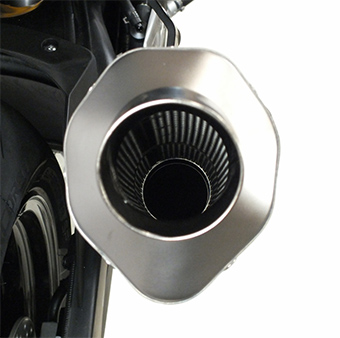

The image muffler is a prototype. There are some differences from the products sold.
P/No.180SF-S82-A1SV0
$ 2900 USD
Type-E
Applicable model / year : '20- CBR1000RR-R (SC82) Race vehicle
EX pipe : Ti
Silencer : Ti
Product weight: 4.4kg (including silencer stay, STD : 7.7kg)
OIL exchange : OK
OIL filter : OK
Proximity exhaust noise : 100dB / 6000rpm

Remark :
Endurance Race Specifications (Header pipe/Exhaust pipe split type)
It is a product for racing and a product for circuit driving. You cannot drive on public roads.
Regarding the volume, please check the noise regulations and race rules of the circuit you are driving.
The price of this item is over JPY 300,000-cash on delivery is not possible.
Includes aluminum silencer stay.

The image muffler is a prototype. There are some differences from the products sold.
P/No.180EF-S82-A1SV0
$ 3300 USD
Plug Set Oil Line
It is used during maintenance (remove the oil line) and when storing the engine alone.
Use genuine parts to fix the plug.

Applicable model/year : '20- CBR1000RR-R (SC82)
Remark : Sold as a set of 2 (with O-ring)
P/No.156T0-S82-A1AL0
$ 29 USD
Stroke Sencer Stay
Stroke Sencer Stay / Front
Applicable model / year: '20- CBR1000RR-R (SC82) Race vehicle
Remarks : For Showa and Orleans suspension / For HRC stroke sensor
P/No.45130-S82-A1AL0
$ 104 USD
Stroke Sencer Stay / Rear
Applicable model / year: '20- CBR1000RR-R (SC82) Race vehicle
Remark: For Showa ST / HRC stroke sensor
P/No.35010-S82-A1AL0
$ 94 USD
RR SUS Bilt / Nut Set
Applicable model/year : '20- CBR1000RR-R (SC82) Race vehicle
Remark: Bolts and nuts are sold as a set.
P/No.209201-S82-000
$ 135 USD
Handle Stoper
LApplicable model/year : '20- CBR1000RR-R (SC82) Race vehicle
Remark : L/R set sale
P/No.53610-S82-A2AL0
$ 47 USD
Cowl Stay
Low Cowl Stay
Applicable model/year : '20- CBR1000RR-R (SC82) Race vehicle
Remark : It is a product for FRP cowl and carbon cowl.
P/No.64500-S82-A1AL0
$ 41 USD
Side Cowl Stay
Applicable model/year : '20- CBR1000RR-R (SC82) Race vehicle
Remark : It is a product for FRP cowl and carbon cowl.
P/No.64300-S82-A1SU0
$ 46 USD
Up Cowl Stay
Applicable model/year : '20- CBR1000RR-R (SC82) Race vehicle
Remark : It is a product for FRP cowl and carbon cowl.
P/No.64100-S82-A1SU0
$ 46 USD
Stand Fook Plate Set
SC82 Stand swing plate for genuine swing arm.

Applicable model/year: CBR1000RR-R(SC82)
Material : A2017 Surface treatment: Alumite treatment (red)
Remark : 4 mounting bolts included

When used in combination with TSR's REAR STAND TYPE-A13, the ground-tire (genuine tire) distance is about 22 mm.
The distance when mounted (outside hook part-outside hook part) is approximately 328 mm.
P/No.52120-HWR-000
$ 188 USD
Fenderless Kit
Currently in production. The first production will be shipped after the end of June. After completion, it will be shipped sequentially. After the shipment is completed, we will send you an email with the Yamato Transport slip number. The first production is sold out. The production for July will be shipped after July 20.

Conformity: '20- CBR1000RR-R (SC82)
When traveling on public roads, the length of the vehicle will change, so it is necessary to undergo structural changes (vehicle inspection).

Remark: The angle of the license plate is 40 degrees. Includes reflector / LED number light (waterproof coupler installed)
he image is a prototype.
P/No.80200-S82-A1BK0
$ 229 USD
4 Position Step
Street / Black
Conformity: '20-CBR1000RR-R(SC82)

If you want to use the reverse change (race shift, 1UP-5DOWN) on SP model and vehicles equipped with genuine quick shifter, please purchase the optional product (part number: 24710-S82-000 ¥6,300-, tax not included).

-Use duralumin (A2017 material) for the step plate pedal, Direct operation feeling due to high rigidity which is the conventional design concept It reduces damage by flexing against the impact of falls.
-A genuine brake lamp switch can be attached
・Step bar position movement: Back 0mm/12mm
・Up 0mm/12mm
・It was adopted in Suzuka 8th #22 car (Satsu HATI. Honda Team Asia) The shape of the step bar is used.

Product weight: -kg (STD ratio: -kg)

*The image is a prototype.
P/No.50000-S82-B1BK0
$ 675 USD
Street / Silver
Conformity: '20-CBR1000RR-R(SC82)

If you want to use the reverse change (race shift, 1UP-5DOWN) on SP model and vehicles equipped with genuine quick shifter, please purchase the optional product (part number: 24710-S82-000 ¥6,300-, tax not included).

-Use duralumin (A2017 material) for the step plate pedal, Direct operation feeling due to high rigidity which is the conventional design concept It reduces damage by flexing against the impact of falls.
-A genuine brake lamp switch can be attached
・Step bar position movement: Back 0mm/12mm
・Up 0mm/12mm
・It was adopted in Suzuka 8th #22 car (Satsu HATI. Honda Team Asia) The shape of the step bar is used.

Product weight: -kg (STD ratio: -kg)

*The image is a prototype.
P/No.50000-S82-B1BK0
$ 675 USD
Rear Fender
Plain weave carbon
We are currently in production, but we cannot produce in large quantities due to manual production.
It is expected that delivery will take several weeks. Thank you for your understanding.
The first shipment is planned after the end of June.

Regarding mail order orders, we will ship sequentially after completion.

After shipping, we will notify you by email such as Yamato Transport slip number.

Applicable model/year : 2020- CBR1000RR-R (SC82)
Material: plain weave carbon
P/No.80100-S82-A1CA0
$ 330 USD
Front Fender
Plain weave carbon
We are currently in production, but we cannot produce in large quantities due to manual production.
It is expected that delivery will take several weeks. Thank you for your understanding.
The first shipment is planned after the end of June.

Applicable model/year: 2020- CBR1000RR-R (SC82)
Material: plain weave carbon

This front fender does not have a genuine brake hose clamp.
We recommend replacing the brake hose. (Be careful not to load the fender.)
P/No.61100-S82-A1CA0
$ 310 USD
Sproket Guard
Plain weave carbon
The sprocket guard attached to the race machine can now be attached to the street machine
Designed and manufactured.
Use the boss of the stand hook and the adhesive tape for mounting.

Applicable model/year : CBR1000RR-R (SC82)
Material: carbon
P/No.52000-S82-A1CA0
FRP $ 104 USD
Carbon $ 125 USD
Types
Change Arm Set
Conformity: '20-CBR1000RR(SC82) TSR step kit/vehicle equipped with genuine quick shifter
Please purchase if you want to use reverse change (racer shift 1UP-5DOWN) on a vehicle equipped with a genuine quick shifter.

Product weight: -kg (STD ratio: -kg)
*The image is a prototype.
P/No.24710-S82-000
$ 70 USD
Link Set
LINK SET
There are two link ratios, A type and B type.

Made to order.
52460-LM20-A00 :
Link A + Connecting rod A set for titanium bolts
52460-LM20-A10:
Link A + STD bolt connecting rod A set
52460-LM20-B00 :
Link B + Titanium Bolt Connecting Rod B Set
52460-LM20-B10 :
Link B + STD bolt connecting rod B set

*Please purchase the titanium bolt specifications separately (part number: 92020-LM20-000).
Applicable model/year: '20- CBR1000RR-R (SC82)
Remarks: Race-specific parts/set sales
P/No.52460-LM20-xxxx
$ 675 USD
Types
Link Bolt Set
This is a titanium bolt set exclusively for LINK SET A / B (product number: 52460-LM20-A00/B00).
Made to order.

Applicable model/year: '20- CBR1000RR-R (SC82)
Remarks: Race-specific parts/set sales
P/No.92020-LM20-000
$ 374 USD
